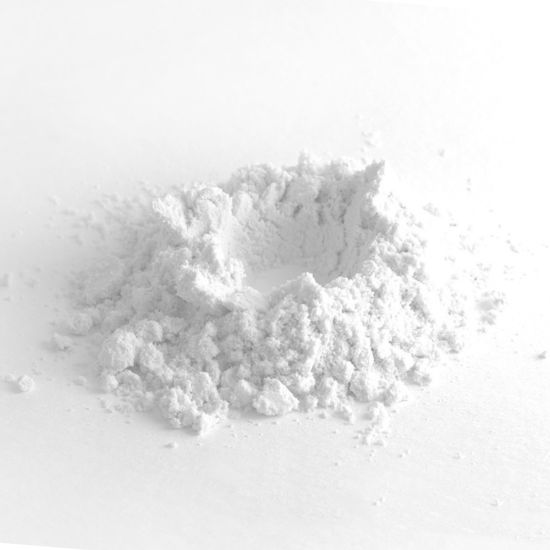

Biodegradable Starch Resin

  • Model NO.: Resin
  • Trademark: SWC
  • Transport Package: as Customers Requirements
  • Specification: 99min
  • Origin: China
  • Molecular Principal Chain: Heterochain Polymer
  • Color: White
  • Name: Biodegradable Resin
  • Melt Flow Index: 1.07 G/ 10 Min ( .325 Kg @ 150 Deg.
  • Density: 1.21 g/cm3
  • Melting Temperature Range: 90 - 130 Deg. C
Biodegradable Starch Resin
Product Name: Biodegradable Starch Resin (BIO-S2-B-F)

Description: BIO-S2-B-F is a Compostable and Biodegradable plastic based on a blend of thermoplastic starch (TPS), aliphatic polyesters (AP) and natural plasticizers.This grade of resin is compatibilised to offer a high level of mechanical strength,outstanding elongation properties and toughness. The resin is based on corn starch which is a renewable material.

BIO-S2-B-F resins are certified biodegradable during composting in
professionally managed composting facilities.
Complies with European Standard EN13432, USA standard ASTM 6400,Australian Standard AS 4736 and the Japanese "GreenPla" standard.
Complies with International Standard ISO16929, ISO 14855
Used for blown film applications up to 120 microns.

Properties Properties Test Method Typical Value/ Unit
Melt Flow Index ASTM D-1238 1.07 g/ 10 min ( .325 Kg @ 150 deg.
Density ASTM D-792 1.21 g/cm3
Melting Temperature Range ASTM D-3418 90 - 130 deg. C
Tensile strength at yield ASTM D-883 > 25 MPa
Tensile strength at break ASTM D-883 > 15 MPa
% Elongation at break ASTM D-883 > 500 % at low strain rates
Impact Resistance - Dart Test ASTM D-1709 0.23 k g
Tear propagation ASTM D-1922 2.9 Newton
Oxygen transmission rate ASTMF-1927 1175 (cc/m2.day)


Compostable bags
  1. Shopping bags/Check-out bags
  2. Garbage bags
  3. Leaf litter bags
  4. Green bin liners
  5. Produce and meat liners
  6. Overwrap Packaging
  7. Mulch film
  8. Breathable film
Processing Conditions:
BIO-S2-B-F resin can be processed on standard LDPE or LLDPE blown film equipment. Specific Instructions for Film Blowing of BIO-S2-B-F Resin:
1. The resin is very sensitive to temperature during the film blowing process.
Please be cautious of the temperature used during extrusion and film blowing. As a reference, the film-blowing temperatures successfully used by the
manufacturer are:
Feed Zone 1 > X >> Die Temp
120°C /145°C /145°C /145°C. 135°C
2. Before blowing the raw material, you should check that the moisture level does not exceed 1%. If the moisture level is greater than 1%, the resin will need to be dried before film blowing. The drying temperature is no higher than 65 °C and drying time should be no longer than one hour.
3. Before blowing the film, the film blowing extruder needs to be purged and cleaned of residual polyethylene and then the BIO-S2-B-F resin can be used as the last cleaning step, after which the temperature can be adjusted to the correct settings.
4. The screw rotation speed should be slow at first and then fast to match the haulage speed which is first slow and then fast as well.
5. The inside and outside aeration should be gradually changed from weak to strong. Cold aeration is better; 10-15 °C works to avoid film blocking problems.
6. The preferred blow-up ratio is 1:2.5 or 1:3. The height from die orifice to the nip roll should be higher than 2.5 m to ensure full cooling and prevent film blocking.

Comparative Properties:
A 30 micron in BIO-S2-B-F gives similar performance properties to a 20 micron HDPE bag if properly blown with an air-ring chilled down to 10-12 °C and if allowed to 'condition' for 48 hrs. These thermoplastic starch polymer films need time to reabsorb moisture to develop their full physical properties.

BIO-S2-B-F is a completely biodegradable polymer suitable for the manufacturing of film-type products. It can be directly used in the film blowing process. It does not contain any non-degradable polymers such as PE, PP, PS and PVC. Independent university testing shows that after biodegradation BIO-S2-B-F does not leave any harmful residues.

This film grade has been evaluated for compostability in accordance with INTERNATIONAL STANDARD ISO 16929 (2002-11-01) "Plastics-Determination of the Degree of Disintegration of Plastic Materials under Defined Composting Conditions in a Pilot Scale Test". According to the European certification scheme for biodegradable materials, Performance Standard EN 13432, the pass threshold for this test is 90% of the material passing through a 2mm sieve after the 12 week test period.

The testing shows that the plastic film samples used in this test are completely compostable as demonstrated by their 100% disintegration after 3 months and > 90% mineralization in less than 6 months. In the laboratory scale composting test according to ISO 14855: 1999 Biograde film grade resin reached 90% biodegradation relative to cellulose reference material and meets the biodegradability requirement specified in the EN 13432 standard.

Other Comments
  1. Film blown thin. The thickness can be less than 0.02 mm.
  2. Good compatibility. The film is transparent with no granulation or lines of TPS seen in the film.
  3. Easy film blowing performance. The film bubble is stable and no additional air cooling is needed.
  4. Easy to add colours using Biodegradable colourants based on starch, PLA, or biodegradable polyester based masterbatch.
  5. Thermal sealing strength is as good as PE.
  6. The biodegradable trim waste can be reprocessed and recycled as long as it is kept segregated (ie. not mixed with polyethylene) and kept dry. The film edge trim and bag handle "punch-outs" can be processed through a Muncy, an Erema or similar film reprocessing unit into regrind pellets or through an agglomerator or compactor to produce agglomerated/compacted pellets. The regrind pellets can be fed into the main film process at a ratio of 10:90 regrind/virgin resins.
  7. Care should be taken to ensure the zone temperature/s of any reprocessing equipment is not set at greater than 155 deg. C or else resin degradation (ie. brown discoloration, odour and fumes) will result.

Packing and Storage
Packing In 25kgs net bag or 500kgs jumbo bag, 15mts in 20Fcl with pallets.
Storage Keep tightly closed and store in cool and dry place. Avoid heat and sunlight. Once container is open, use the product immediately.

Biodegradable Starch ResinBiodegradable Starch ResinBiodegradable Starch ResinBiodegradable Starch Resin
Frequently Asked Questions

Q1: May I get one sample before placing order?

Re: Yes, Sample are available. For normal products, samples are for free and you just need to bear the freight;

For those high value products, you just need to freight and certain product cost. When we both cooperate for

some times or when you are our VIP customer, free sample will be offered when you need.

Q2: Which payment is available for your company?
Re: T/T, L/C or Alibaba trade insurance. You can choose the one which is convenient for you.

Q3: How and when can I get my goods after payment?
Re: For small quantity products, they will be delivered to you by international courier(DHL, FedEx, TNT etc.)

or by air. Usually it will cost 3-5days that you can get the goods after delivery.For large quantity products,

shipping by see is worthwhile.It will cost days to weeks to come to your destination port, which depends on

where the port is.

Q4: Is there any possible to use my appointed label or package?
Re: Yes. If needed, we'd like to use label or package according to your requirement.

Q5: How can you guarantee the goods you offer is qualified?
Re: We always believe honesty and responsibility are basis of one company, so whatever products we provide

for you all are qualified. We will have goods tested and provide COA before delivery for sure.
